Products > POWER CAPACITOR > > 3 PHASE 50 HZ 440V AUTOMATICAL POWER CAPACITOR WITH REACTOR
Product name : 3 PHASE 50 HZ 440V AUTOMATICAL POWER CAPACITOR WITH REACTOR
Product No. : 2
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

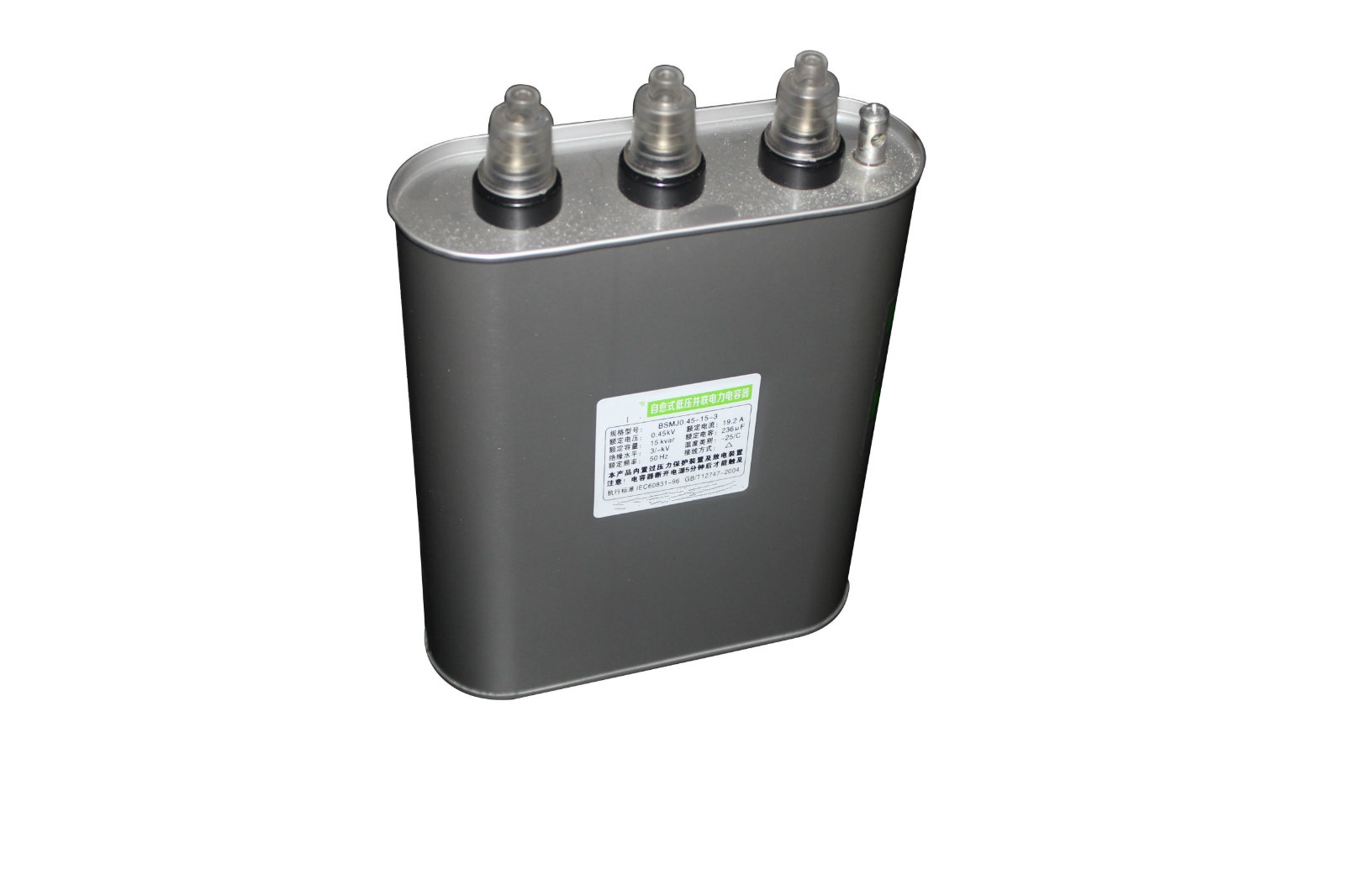

JINGRUN CAPACITOR SUPPLIER 3 PHASE 50HZ 440V AUTOMATICAL POWER CAPACITOR WITH REACTOR PICTURE





Usage:

Shunt capacitor of self-healing









JINGRUN CAPACITRO SUPPLIER 3 PHASE 50 HZ 440V AUTOMATICAL POWER CAPACITOR WITH REACTOR PARAMETERS





Range of capacity

1kvar~60kvar

Capacity deviation

+/-5% or as you order

Rated voltage

125V-500VAC, 50/60HZ

Use temperature range

-25℃~+70℃

Loss tangent

℃,50/60HZ)

Lead to terminal resistance

AC>=1.75Un 5S no breakdown

Resistance between the lead and the housing

AC>=2000V 10S no breakdown

Insulation resistance

Rj.C>=3000MΩ.μF;Rj>=1000Ω

Execution standard

GB/T3667.1-2005IEC60252-1:2001










JINGRUN CAPACITOR SUPPLIER 3 PHASE 50 HZ 440V AUTOMATICAL POWER CAAPCITRO WITH REACTOR SIZE LIST




Type

Product size

installation size

Type

Product size

installation size

BSMJ0.45-2-3(1)

167*60*105

185*40

BSMJ0.45-16-3(1)

167*60*205

185*40

BSMJ0.45-4-3(1)

167*60*105

185*40

BSMJ0.45-18-3(1)

167*60*240

185*40

BSMJ0.45-5-3(1)

167*60*105

185*40

BSMJ0.45-20-3(1)

167*60*240

185*40

BSMJ0.45-6-3(1)

167*60*105

185*40

BSMJ0.45-25-3(1)

167*85*205

200*60

BSMJ0.45-8-3(1)

167*60*125

185*40

BSMJ0.45-30-3(1)

167*85*245

200*60

BSMJ0.45-10-3(1)

167*60*175

185*40

BSMJ0.45-35-3(1)

167*85*285

200*60

BSMJ0.45-12-3(1)

167*60*175

185*40

BSMJ0.45-40-3(1)

270*120*200

300*78

BSMJ0.45-14-3(1)

167*60*205

185*40

BSMJ0.45-50-3(1)

270*120*230

300*78

BSMJ0.45-15-3(1)

167*60*205

185*40

BSMJ0.45-60-3(1)

270*120*270

300*78











JINGRUN CAPACITOR SUPPLIER 3 PHASE 50 HZ 440V AUTOMATICAL POWER CAPACITRO WITH REACTOR FEATURES




1. small volume, light weight;

2 .Low loss;

3. Excellent self-healing performance;

4. Recessed terminals;

5. No oil leakage









JINGRUN CAPACITRO SUPPLIER 3 PHASE 50 HZ 440V AUTOMATICAL POWER CAPACITOR WITH REACTOR INCLUDE THE FOLLOWING




1. This kind of capacitors has applied the Zn-Al complex metalized film,which is the most advanced in our country at present;

2. It also adopts the advanced foreign production technology and techniques as well as the leading-edge equipment from Japan and Korea;

3. This kind of capacitor is produced according to the international GB/T12747-2004 and the international standard of IEC60831-1(1996).
