Products > POWER CAPACITOR > > POWER FACTOR 25 KVAR CAPACITOR TO 10KVAR POWER CAPACITOR 100V CAPACITOR DFMJ SHUNT CAPACITOR 224J 250V
Product name : POWER FACTOR 25 KVAR CAPACITOR TO 10KVAR POWER CAPACITOR 100V CAPACITOR DFMJ SHUNT CAPACITOR 224J 250V
Product No. : 1
←[Previous Product]
Online Inquiry         Email Us

  Details:

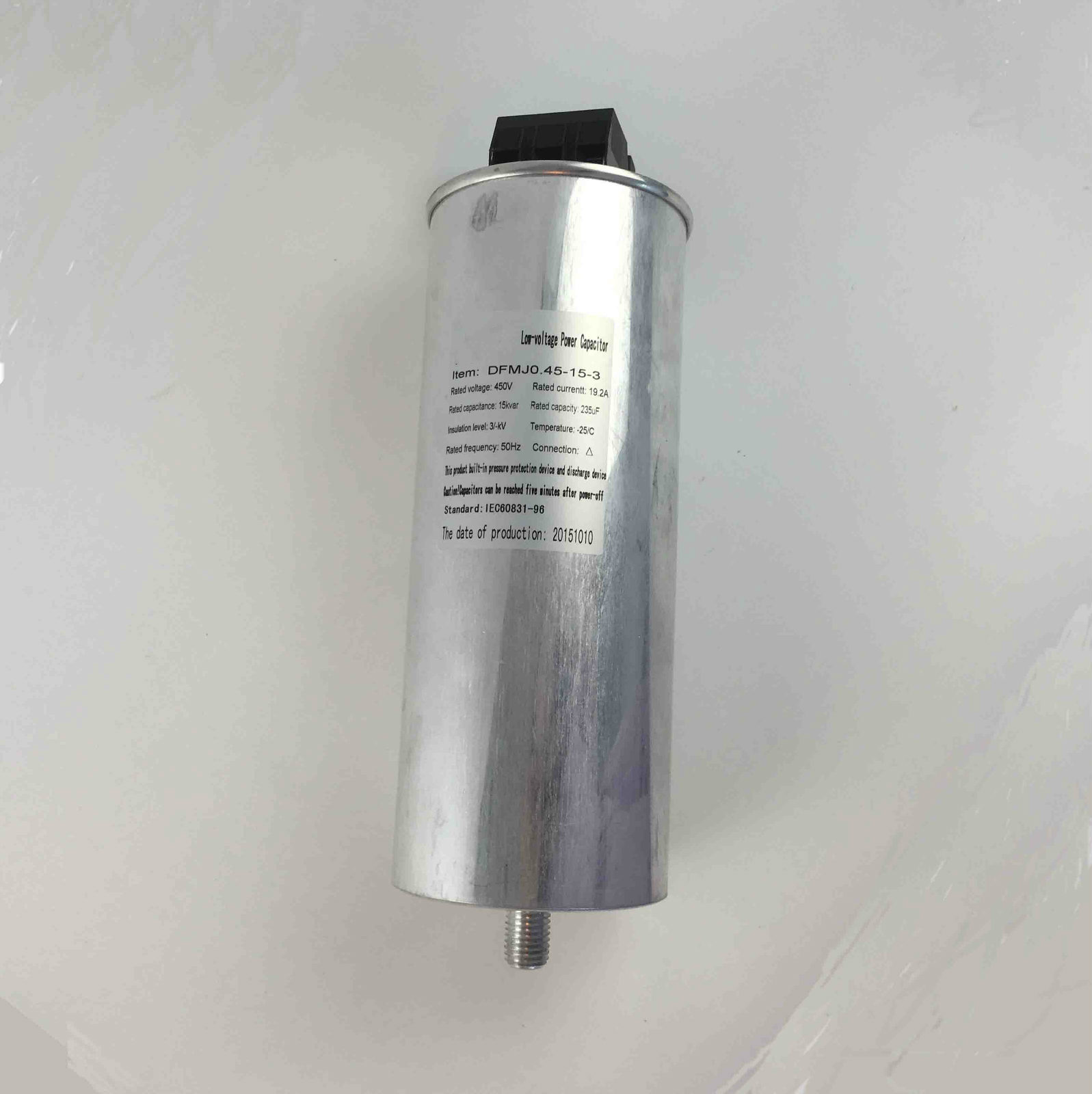

POWER FACTOR 25 KVAR CAPACITOR TO 10KVAR POWER CAPACITOR PICTURE








Usage:

Columniform capacitor of self-healing









POWER FACTOR 25 KVAR CAPACITOR TO 10KVAR POWER CAPACITOR PARAMETERS





Range of capacity

1kvar~60kvar

Capacity deviation

+/-5% or as you order

Rated voltage

125V-500VAC, 50/60HZ

Use temperature range

-25℃~+70℃

Loss tangent

℃,50/60HZ)

Lead to terminal resistance

AC>=1.75Un 5S no breakdown

Resistance between the lead and the housing

AC>=2000V 10S no breakdown

Insulation resistance

Rj.C>=3000MΩ.μF;Rj>=1000Ω

Execution standard

GB/T3667.1-2005IEC60252-1:2001











POWER FACTOR 25 KVAR CAPACITOR TO 10KVAR POWER CAPACITOR SIZE LIST








DFMJ size list

Capacity(kvar)

Size

Capacity(kvar)

Size

DFMJ0.45-2.5-3(1)

76*120

DFMJ0.4-2.5-3(1)

76*120

DFMJ0.45-5-3(1)

76*175

DFMJ0.4-5-3(1)

76*175

DFMJ0.45-7.5-3(1)

76*175

DFMJ0.4-7.5-3(1)

76*175

DFMJ0.45-10-3(1)

86*245

DFMJ0.4-10-3(1)

86*245

DFMJ0.45-12.5-3(1)

86*245

DFMJ0.4-12.5-3(1)

86*245

DFMJ0.45-15-3(1)

96*245

DFMJ0.4-15-3(1)

96*245

DFMJ0.45-20-3(1)

106*245

DFMJ0.4-20-3(1)

106*245

DFMJ0.45-25-3(1)

116*290

DFMJ0.4-25-3(1)

116*290

DFMJ0.45-30-3(1)

116*290

DFMJ0.4-30-3(1)

116*290











POWER FACTOR 25 KVAR CAPACITOR TO 10KVAR POWER CAPACITOR FEATURES




1.Designed into column type and mini structure, this product can be installed in any direction;

2.Providing strengthened safety protection,reinforced connection terminals and reactive compensation device parts.









POWER FACTOR 25 KVAR CAPACITOR TO 10KVAR POWER CAPACITOR INCLUDE THE FOLLOWING



1. The rated voltage of the capacitor should be in accordance with the actual net voltage;

2. Do not test the capacitor's quality by measuring the quality, you should measure the capacitance of the capacitor;

3. Never operate the capacitor and transformer in parallel connection under light load.
