Products > FAN CAPACITOR > > CBB61 ELECTROLYTIC CAPACITOR 24UF 250V TO CBB61 CAPACITOR PRICE 1UF 400VAC
Product name : CBB61 ELECTROLYTIC CAPACITOR 24UF 250V TO CBB61 CAPACITOR PRICE 1UF 400VAC
Product No. : 3
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

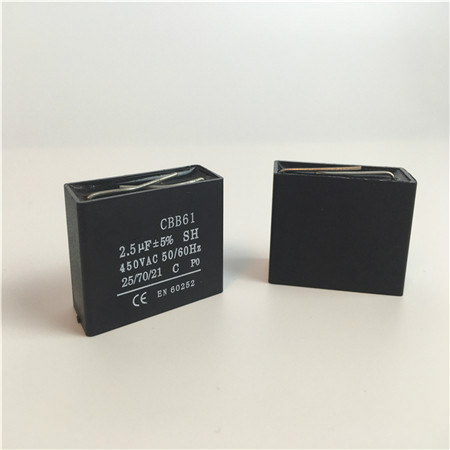

CBB61 CAPACITOR 24UF 250V TO CBB61 CAPACITOR 1UF 400VAC PICTURE








Usage:

With its good self-healing characteristics,long-life span and high proportionality, its widely used as the start-up and running capacitor, which is especially for the electric fan, air-conditioner,electric water pump and electric motor etc.





CBB61 CAPACITOR 24UF 250V TO CBB61 CAPACITOR 1UF 400VAC PARAMETERS








Working Temperature Range:

40--+70℃

Rated Voltage Range:

200-500 VAC

Rated Capacitance Range:

1-30 MFD

Dissipation Factor:

Tan≤0.002(50 Hz)

Rated Tolerance of Capacitance:

±5%

Withstand Voltage:

Intensity Pole-pole Rated voltage*2/10 s pole-Shell*2+1000 V Min 2000 V. AC Insulation resistance T-T RC≥4000 s

Reference Standard:

EN 60252







CBB61 CAPACITOR 24UF 250V TO CBB61 CAPACITOR 1UF 400VAC SIZE LIST






Capacity

film

400-450V

film

250V

film

300-350V

1uf

7um

36*11*22mm

5um

36*10*20mm

6um

36*10*20mm

  1.2uf

7um

36*12*22mm

5um

36*10*20mm

6um

36*10*20mm

  1.25uf

7um

36*12*22mm

5um

36*10*20mm

6um

36*10*20mm

  1.5uf

7um

38*13.5*24mm

5um

36*11*22mm

6um

36*10*20mm

1.8uf

7um

38*13.5*24mm

5um

36*12*22mm

6um

36*11*22mm

  2uf

7um

38*15*25mm

5um

36*12*22mm

6um

36*11*22mm

2.2uf

7um

38*15*25mm

5um

36*12*22mm

6um

36*11*22mm

  2.5uf

7um

38*15*25mm

5um

36*12*22mm

6um

38*15*25mm

  3uf

7um

38*15*25mm

5um

36*12*22mm

6um

38*15*25mm

  3.25uf

7um

38*17*28mm

5um

36*12*22mm

6um

38*15*25mm

3.5uf

7um

38*18.5*29mm

5um

37*13.5*24mm

6um

38*15*25mm

  4uf

7um

47*17*28mm

5um

36*12*22mm

6um

38*17*28mm

4.5uf

7um

47*17*28mm

5um

36*15*25mm

6um

38*18.5*29mm

  5.0uf

7um

47*20.5*33mm

5um

36*15*25mm

6um

38*19*31mm

  6.0uf

7um

47*20.5*33mm

5um

38*17*28mm

6um

47*20.5*33mm

  7.5uf

7um

48*22*35mm

5um

47*17*28mm

6um

47*20.5*33mm

8.0uf

7um

48*22*35mm

5um

47*17*28mm

6um

47*20.5*33mm

10uf

7um

47*23*35mm

5um

47*19*31mm

6um

47*20.5*33mm

12uf

7um

58*25*38mm

5um

47*23*35mm

6um

47*23*35mm

15uf

7um

59*28*40mm

5um

47*23*35mm

6um

48*26*39

16uf

7um

59*28*40mm

5um

47*23*35mm

6um

48*26*39

18uf

7um

59*30*40mm

5um

58*24*33mm

6um

59*28*40mm

20uf

7um

59*30*40mm

5um

58*26*38mm

6um

59*28*40mm

24uf

7um

59*30*40mm

5um

58*26*38mm

6um

59*28*40mm

25uf

7um

59*30*40mm

5um

58*26*38mm

6um

59*28*40mm









CBB61 CAPACITOR 24UF 250V TO CBB61 CAPACITOR 1UF 400VAC FEATURES




1. Non induction winding structure of metallic polypropylene membrane.

2. Small volume, light weight, low loss, excellent self-healing characteristic.

3. Non-toxic and non-leaking, profit environmental protection.











CBB61 CAPACITOR 24UF 250V TO CBB61 CAPACITOR 1UF 400VAC INCLUDE THE FOLLOWING






1. Use square plastic shell, and insulation sealed lid for sealing plastic lid for sealing or resin for sealing.

2. Copper soldering terminal, plastic coated copper wire and CP wire are available.

3. With frequency 50/60 Hz, voltage 250 Vac, and can help motors start and run.

4.It can continuously operate under rated conditions.











CBB61 CAPACITOR 24UF 250V TO CBB61 CAPACITOR 1UF 400VAC WHY CHOOSE US



High Quality

1.Exported to 58 countries: England, Egypt, Russia, Iraq, Poland and so on.

2. More than 90% customers make payment before meeting us.

3. Reorder rate up to 80%.

4. Never sell any renewed capacitor, we are Alibaba International Trade Insurance Enterprise.

5. Focusing on middle and high-end market, we never seize market by using inferior material.

6. The first factory producing capacitor for 15 years with professional research.




Full Service

1. 3000 hours warranty

2. R&D, OEM, ODM

3.Sourcing service as long as you give us the picture and specifications

4. Quick response within 2-8 hours, solve problems in 2 days.

5. Visit our factory anytime, 24-hours phone call is available, ship all samples within 2-10 days.




Reasonable Price

1. Own our own factory, no more mark up and resale price.

2. Aim atlong-term cooperation, always offer our best price and best solution to you
